Welcome to inquire Articulated Dump Truck Tire from our company - Linglong. Our factory is one of Articulated Dump Truck Tire manufacturers and suppliers in China. We look forward to working with you,and we provide customized services for you.

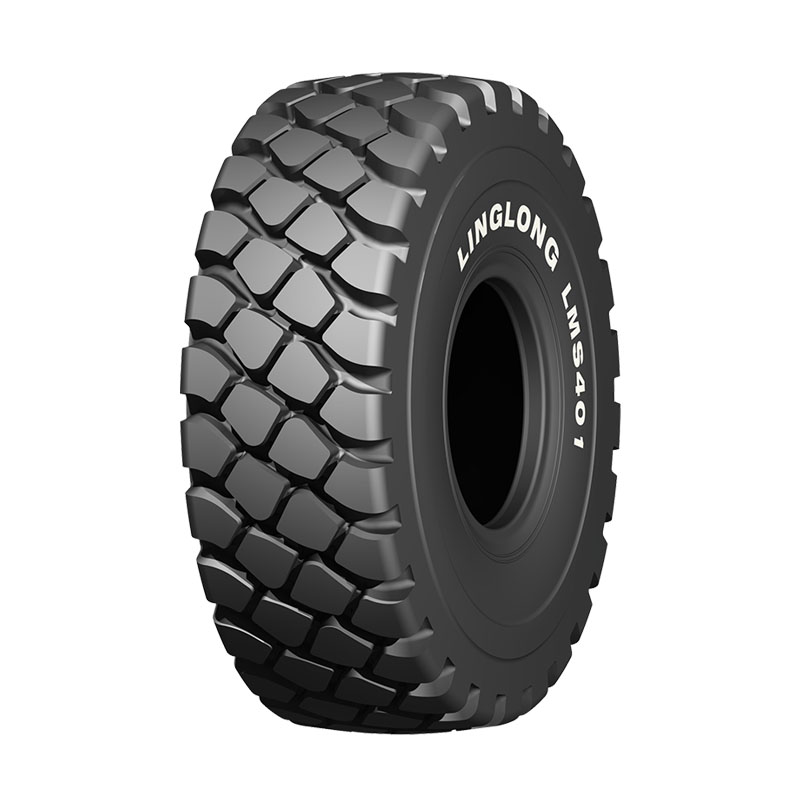

LINGLONG radial tire for articulated dump trucks is developped as long life, maximized protection and excellent traction in a variety of demanding application. These tires supply various performance benefits:
1.Cooler operating temperatures,less susceptibility to damage from impacts and penetration.
2.Long-lasting,even-wearing tread pattern.
3.Outstanding cut resistance and long tread life on rocky or gravel surfaces in mining.
■Optimized tread compound for extended wear and endurance
■Wide aggressive tread design for excellent handling and lateral adhesion
■Maximized sidewall reinforcement protects against cutting and abrasion in the toughest applications
Size | Star rating | TRA code | Speed index | Rim | Section width(mm) | Overall diamter(mm) | Tread depth(mm) | Load capacity(kg) | Inflation pressure(kPa) | Tread compound | Type | |||||||
17.5R25 | ☆☆ | E-3/L-3 | B | 14.00/1.5 | 445 | 1348 | 27 | 5450 | 525 | C1 | TL | |||||||
20.5R25 | ☆☆ | E-3/L-3 | B | 17.00/2.0 | 521 | 1493 | 30 | 7300 | 525 | C1 | TL | |||||||
23.5R25 | ☆☆ | E-3 | B | 19.50/2.5 | 597 | 1617 | 33 | 9250 | 525 | S1 | TL | |||||||
26.5R25 | ☆☆ | E-3 | B | 22.00/3.0 | 673 | 1750 | 36 | 11500 | 525 | S1 | TL | |||||||
29.5R25 | ☆☆ | E-3 | B | 25.00/3.5 | 749 | 1874 | 39 | 14000 | 525 | S1 | TL |
■Optimized tread compound for extended wear and endurance
■Enhanced radial construction provides superior flotation and stability
■Tread pattern designed to deliver long tire life and great traction
Size | Star rating | TRA code | Speed index | Rim | Section width(mm) | Overall diamter(mm) | Tread depth(mm) | Load capacity(kg) | Inflation pressure(kPa) | Tread compound | Type | |||||||
20.5R25 | ☆☆ | E-4 | B | 17.00/2.0 | 521 | 1493 | 50 | 7300 | 525 | S1 | TL | |||||||
23.5R25 | ☆☆ | E-4 | B | 19.50/2.5 | 597 | 1673 | 50 | 9250 | 525 | S1 | TL | |||||||
26.5R25 | ☆☆ | E-4 | B | 22.00/3.0 | 673 | 1798 | 55 | 11500 | 525 | S1 | TL | |||||||
29.5R25 | ☆☆ | E-4 | B | 25.00/3.5 | 749 | 1921 | 60 | 14000 | 525 | S1 | TL |
