Grader Tires

High quality Grader Tires made in China. Linglong is Grader Tire manufacturer and supplier in China.

Send Inquiry

Product Description

Hot sale quality Grader Tires made in China. You are welcomed to visit our factory to see the popular, reasonable price, and high-quality Grader Tires, LINGLONG looks forward to cooperating with you.

The graders must always be available in order to slope or level the aggregate beds on a building site, or to maintain the slopes. To be effective, the graders need tire equipment perfectly adapted to the work required. The range of LINGLONG tires covers all of their working conditions, ensuring excellent performance.

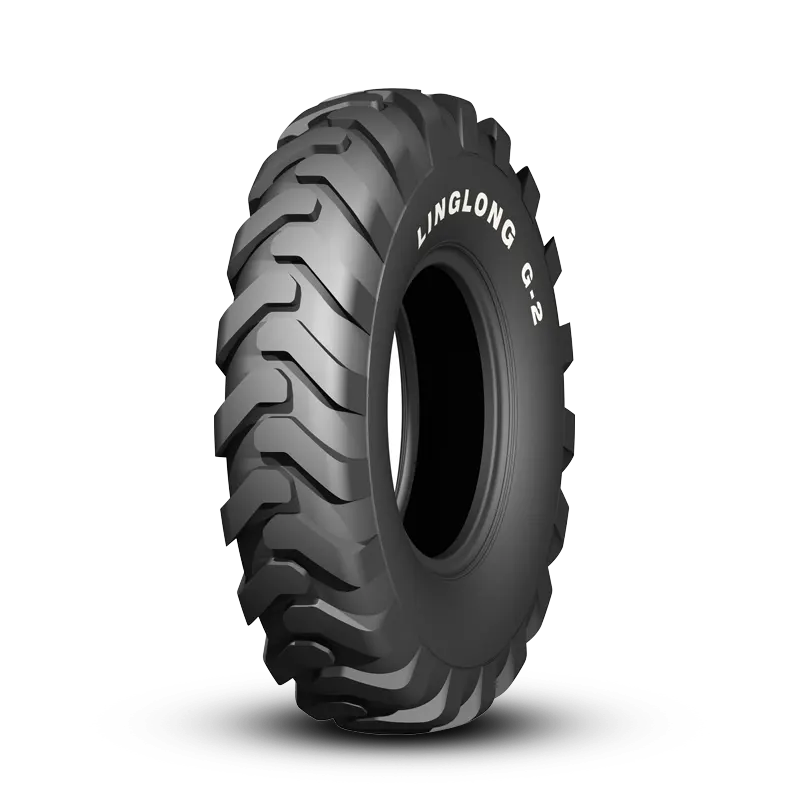

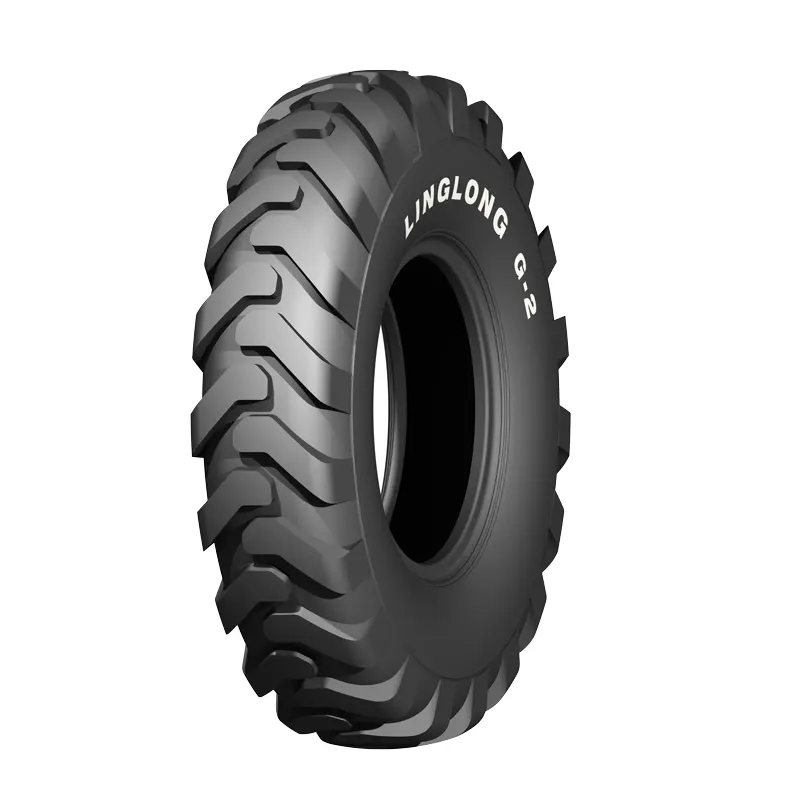

G-2

G-2 Bias

■45° tread pattern design provides superior traction

■Heavy tire casing offers strength needed in a Grader application

■Special tear-resistant resin application enhances the cutting resistance of the tread

Size	Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	10km/h		40km/h		Type
Size	Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	Load Capacity (kg)	Inflation Pressure (kPa)	Load Capacity (kg)	Inflation Pressure (kPa)	Type
13.00-24 TG	12	G-2	8.00TG	335	1280	24	5600	450	2725	300	TL
13.00-24 TG	18	G-2	8.00TG	335	1280	24	6700	675	3500	450	TL
14.00-24 TG	12	G-2	8.00TG	360	1350	24	6300	425	3075	275	TL
14.00-24 TG	16	G-2	8.00TG	360	1350	24	7300	550	3650	350	TT/TL

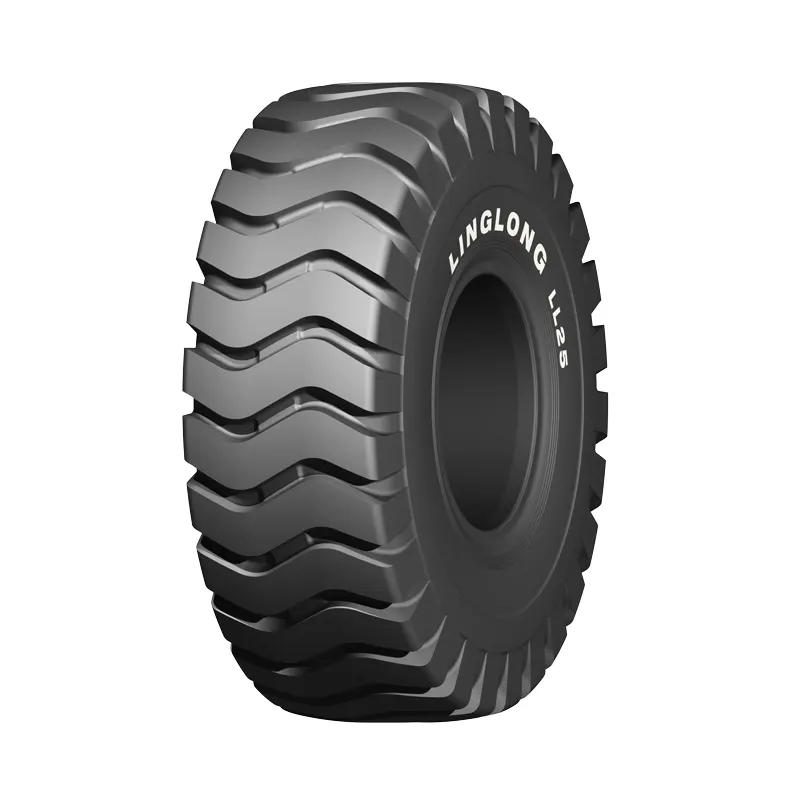

LL25

G-2 Bias

■Heavy tire casing offers strength needed in a Grader application

■Suitable for rocky or gravel surface in mines, quarries and construction sites

Size

Ply

Rating

TRA

Code

Rim

Section

Width

(mm)

Overall

Diameter

(mm)

Tread

Depth

(mm)

10km/h

40km/h

Type

Load

Capacity

(kg)

Inflation

Pressure

(kPa)

Load

Capacity

(kg)

Inflation

Pressure

(kPa)

14.00-24TG

G-2

8.00TG

360

1350

7300

550

3650

350

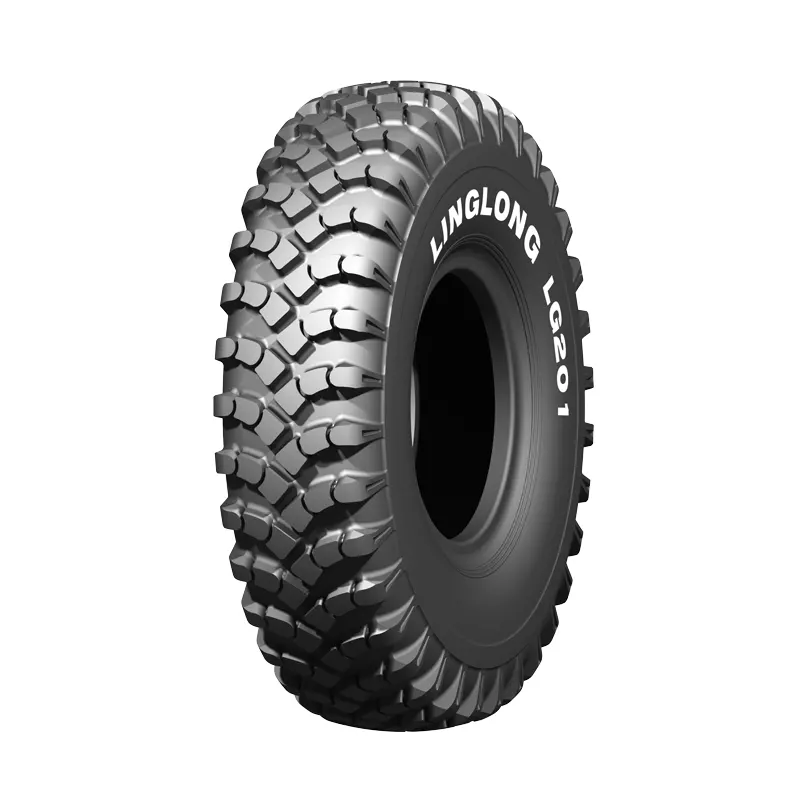

LG201

G-2 Bias

■Special tread lugs are tapered for greater traction and self-cleaning

■Designed for good lateral traction, long wear and smooth ride

■Heavy tire casing offers strength needed in a Grader application

Size	Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	10km/h		40km/h		Type
Size	Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	Load Capacity (kg)	Inflation Pressure (kPa)	Load Capacity (kg)	Inflation Pressure (kPa)	Type
16.00-24 TG	12	12	11.25/2.5	430	1490	28.5	—	—	3650	225	TT
	16	16	11.25/2.5	430	1490	28.5	—	—	4000	275	TT
	20	20	11.25/2.5	430	1490	28.5	—	—	4500	325	TT

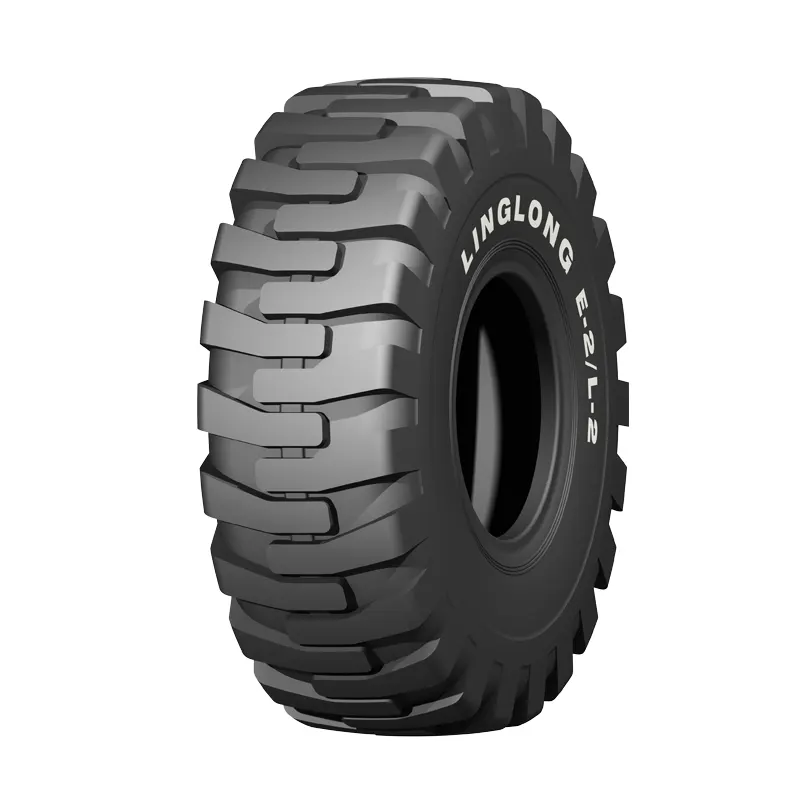

E-2/L-2

E-2/L-2 Bias

■Precision angled bars maximize traction in soft soil

■Open shoulder grooves are self-cleaning for excellent traction and less slipping

■Directional tread pattern for excellent power transfer in forward operation

Size	Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	10km/h		50km/h		Type
Size	Ply Rating	TRA Code	Rim	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	Load Capacity (kg)	Inflation Pressure (kPa)	Load Capacity (kg)	Inflation Pressure (kPa)	Type
15.5-25	12	E-2/L-2	12.00/1.3	395	1275	24	5600	400	3250	250	TL
17.5-25	12	E-2/L-2	14.00/1.5	445	1350	25.5	6150	350	3650	225	TT/TL
	16	E-2/L-2	14.00/1.5	445	1350	25.5	7300	475	4250	300	TT/TL
	24	E-2/L-2	14.00/1.5	445	1350	25.5	9250	700	5600	475	TT
20.5-25	16	E-2/L-2	17.00/2.0	520	1490	28.5	8250	350	5450	275	TL
23.5-25	16	E-2/L-2	19.50/2.5	595	1615	31.5	9500	300	6150	225	TT/TL
	20	E-2/L-2	19.50/2.5	595	1615	31.5	10900	375	7300	300	TT
	24	E-2/L-2	19.50/2.5	595	1615	31.5	12500	475	8000	350	TT
