Linglong is professional Loader and Dozer Tire manufacturer and supplier in China. Buy sample Loader and Dozer Tire with discount from LINGLONG.
Conditions of use of loaders are very diverse, due to the size of machines and the diversity of the tasks assigned to them. The range of LINGLONG bias tires for loaders provides you a solution adapted to your work.

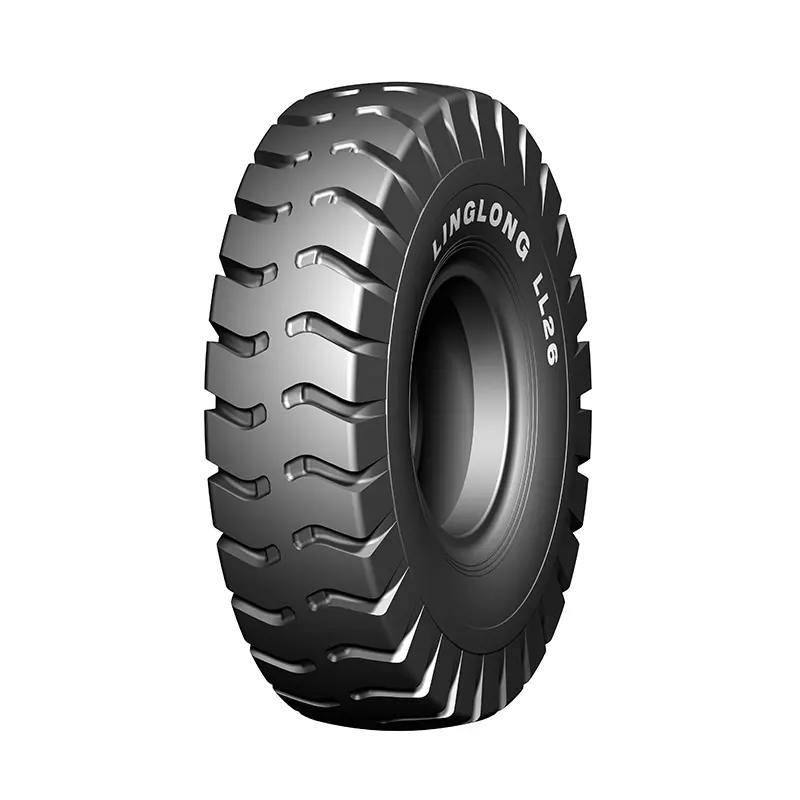

■Strong tire casing offers strength needed in a loader application
■Suitable for rocky or gravel surface in mines, quarries and construction sites
■Excellent performance and maneuverability on wet, soft or muddy surface
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
16/70-20 | 14 | L-3 | 13(SDC) | 410 | 1075 | 17 | 5150 | 450 | 2900 | 350 | TT | ||||||||
15.5-25 | 12 | E-3/L-3 | 12.00/1.3 | 395 | 1275 | 25 | 5600 | 400 | 3250 | 250 | TL | ||||||||
17.5-25 | 12 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 6150 | 350 | 3650 | 225 | TL/TT | ||||||||
16 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 7300 | 475 | 4250 | 300 | TL/TT | |||||||||
20 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 8250 | 575 | 5000 | 400 | TL/TT | |||||||||
28 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 10300 | 825 | 6150 | 550 | TT | |||||||||
20.5-25 | 16 | E-3/L-3 | 17.00/2.0 | 520 | 1490 | 28.5 | 8250 | 350 | 5450 | 275 | TL/TT | ||||||||
20 | E-3/L-3 | 17.00/2.0 | 520 | 1490 | 28.5 | 9500 | 450 | 6000 | 325 | TL/TT | |||||||||
24 | E-3/L-3 | 17.00/2.0 | 520 | 1490 | 28.5 | 10300 | 525 | 6700 | 400 | TL/TT | |||||||||
28 | E-3/L-3 | 17.00/2.0 | 520 | 1490 | 28.5 | 11500 | 625 | 7500 | 475 | TT | |||||||||
23.5-25 | 16 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 9500 | 300 | 6150 | 225 | TL/TT | ||||||||
18 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 10500 | 350 | 6700 | 275 | TT | |||||||||
20 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 10900 | 375 | 7300 | 300 | TL/TT | |||||||||
24 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 12500 | 475 | 8000 | 350 | TL/TT | |||||||||
26.5-25 | 20 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 13200 | 350 | 8250 | 250 | TT | ||||||||
24 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 14000 | 400 | 9250 | 300 | TL/TT | |||||||||
28 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 15500 | 475 | 10000 | 350 | TL/TT | |||||||||
32 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 17000 | 550 | 11200 | 425 | TL/TT | |||||||||
36 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 20000 | 725 | TT | |||||||||||
29.5-25 | 28 | E-3/L-3 | 25.00/3.5 | 750 | 1875 | 40 | 17500 | 425 | 11500 | 325 | TL | ||||||||
42 | E-3/L-3 | 25.00/3.5 | 750 | 1875 | 40 | 22600 | 600 | —— | —— | TL |
■Strong tire casing offers strength needed in a loader application
■Suitable for rocky or gravel surface in mines, quarries and construction sites
■Excellent performance and maneuverability on wet, soft or muddy surface
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
17.5-25 | 12 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 6150 | 350 | 3650 | 225 | TT | ||||||||
16 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 7300 | 475 | 4250 | 300 | TT | |||||||||
23.5-25 | 16 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30.0 | 9500 | 300 | 6150 | 225 | TT | ||||||||
18 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30.0 | 10500 | 350 | 6700 | 275 | TT | |||||||||
20 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30.0 | 10900 | 375 | 7300 | 300 | TT/TL | |||||||||
24 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30.0 | 12500 | 475 | 8000 | 350 | TT/TL | |||||||||
28 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30.0 | 13600 | 550 | 8750 | 400 | TT/TL | |||||||||
32 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30.0 | 14500 | 625 | 9750 | 475 | TT/TL |
■Strong nylon construction provides superior load capactity
■The non-directional tread design provides maximum traction
■Optimized tread pattern design ensures lower tire noise
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
23.5-25 | 16 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30 | 9500 | 300 | 6150 | 225 | TT | ||||||||
20 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30 | 10900 | 375 | 7300 | 300 | TT |
■ Strong nylon construction provides superior load capacity
■ Special cold-resistant tread compound makes it suitable for working in low-temperature environments
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
23.5-25 | 20 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 30 | 10900 | 375 | 7300 | 300 | TT |
■Rugged tread design for superior cut protection
■L3+ tread depth design enhances wearing life
■Special tear resistant resin application enhances the cutting resistance of the tread
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
17.5-25 | 12 | L-3+ | 14.00/1.5 | 445 | 1350 | 36 | 6150 | 350 | 3650 | 225 | TT | ||||||||
23.5-25 | 16 | L-3+ | 19.50/2.5 | 595 | 1615 | 45 | 9500 | 300 | 6150 | 225 | TT | ||||||||
18 | L-3+ | 19.50/2.5 | 595 | 1615 | 45 | 10500 | 350 | 6700 | 275 | TT | |||||||||
20 | L-3+ | 19.50/2.5 | 595 | 1615 | 45 | 10900 | 375 | 7300 | 300 | TT | |||||||||
24 | L-3+ | 19.50/2.5 | 595 | 1615 | 45 | 12500 | 475 | 8000 | 350 | TT | |||||||||
28 | L-3+ | 19.50/2.5 | 595 | 1615 | 45 | 13600 | 550 | 8750 | 400 | TT |
■Strong tire casing offers strength needed in a loader application
■Suitable for rocky or gravel surface in mines, quarries and construction sites
■Excellent performance and maneuverability on wet, soft or muddy surface
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
17.5-25 | 12 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 6150 | 350 | 3650 | 225 | TT | ||||||||
23.5-25 | 16 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 9500 | 300 | 6150 | 225 | TT | ||||||||
18 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 10500 | 350 | 6700 | 275 | TT |
■Classic non-directional tread pattern design, suitable for variety of road conditions
■Special cold-resistant tread compound meets the need of low-temperature working conditions
■Mixed tread compound design, balancing wear and cold resistance
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
18.00-25 | 16 | E-3 | 13.00/2.5 | 500 | 1615 | 30 | 10000 | 375 | 5600 | 275 | TT |
■Solid centerline tread pattern provides excellent cut resistance, smooth ride and extended wear
■Non-directional tread pattern design provides all-round traction and wear resistance
■Aggressive lug design provides premium performance in harsh conditions
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
29.5-29 | 28 | E-3/L-3 | 25.00/3.5 | 750 | 1975 | 40 | 19000 | 425 | 12100 | 325 | TL |
■Deeper tread depth provides excellent wear resistance and longer service life
■Multiple rubber and reinforced tread compounds to meet complex operating environments
■Directional tread pattern for excellent power transfer in forward operation
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter (mm) |
Tread depth (mm) |
10km/h | 50km/h | Type | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
Load capacity (kg) |
Inflation pressure (kPa) |
||||||||||||||||
16/70-20 | 10 | L-3 | 13(SDC) | 410 | 1075 | 20 | —— | —— | 2400 | 250 | TT | ||||||||
14 | L-3 | 13(SDC) | 410 | 1075 | 20 | 5150 | 450 | —— | —— | TT |
■Suitable for rocky or gravel surface in mines, quarries and construction sites
■Excellent performance and maneuverability on wet, soft or muddy surface
■Multiple rubber and reinforced tread compounds to meet complex operating environments
Size | Ply rating | TRA code | Rim |
Section width (mm) |
Overall diamter(mm) |
Tread depth(mm) |
10km/h | Type | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Load capacity (kg) |
Inflation pressure (kPa) |
|||||||||||||||
20.5/70-16 | 16 | L-3 | 10.00(SDC) | 342 | 906 | 17 | 1600 | 280 | TT |
