Implement Tire
With years of experience in production Implement Tire, Linglong can supply a wide range of Implement Tire. High quality Implement Tire can meet many applications, if you need, please reach us timely. In addition to the product list below, you can also customize your own unique Implement Tire according to your specific needs.
Send Inquiry
Product Description
Linglong is a professional China Implement Tire manufacturer with high quality and reasonable price. Welcome to contact us.
Each tire has its own specific characteristics according to your usage and needs, find the most efficient LINGLONG tires.
Discovering implement tire will be the best choice to your needs. No matter fuel savings, mileage or safety - we have all your requirements.

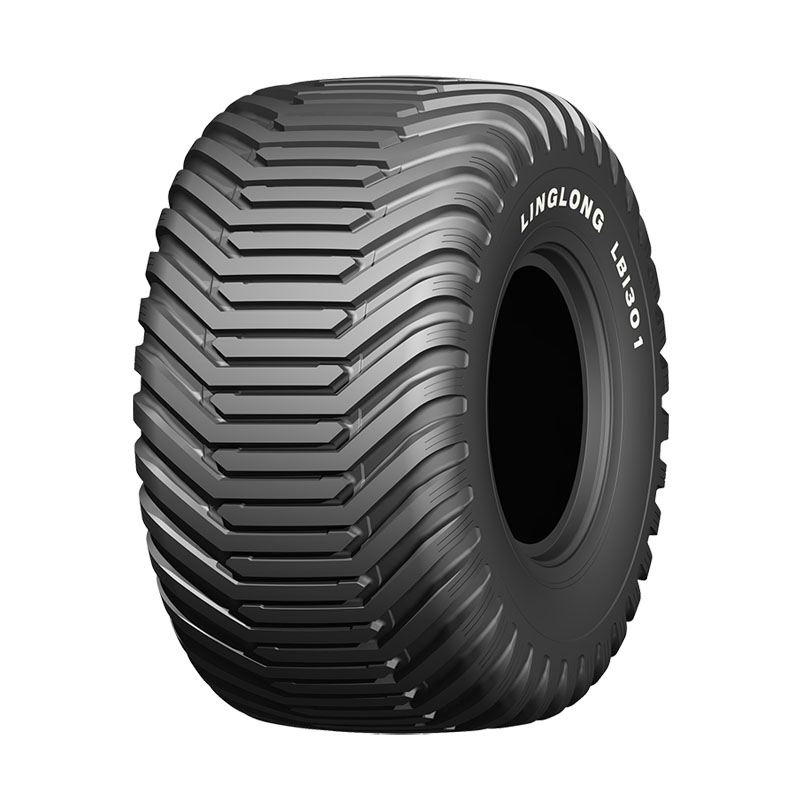

LBI301
I-3 Bias
■Low ground compaction
■Puncture resistant
■Low ground pressure helps protect crops and increase yield
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 400/60-15.5 IMP | 16 | AG13.00 | 404 | 874 | 3150 | 400 | 17.5 | TL |
| 18 | AG13.00 | 404 | 874 | 3450 | 450 | 17.5 | TL | |
| 600/50-22.5 IMP | 16 | AG20.00 | 611 | 1172 | 5770 | 260 | 25 | TL |
| 650/65-30.5 IMP | —— | AG20.00 | 645 | 1621 | 6500 | 200 | 32 | TL |
| 850/50-30.5 IMP | —— | AG28.00 | 862 | 1625 | 7750 | 200 | 32 | TL |

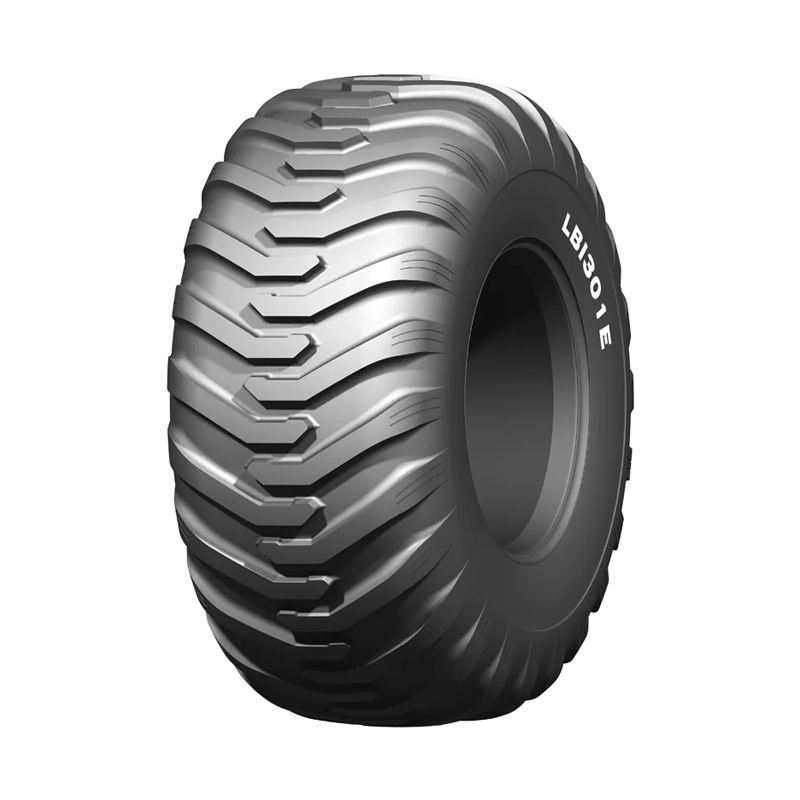

LBI301E
I-3 Bias
■Optimized contour design with lighter tire weight compared with LXL MASTER, which brings better purchasing economics
■Puncture resistant
■Low ground pressure helps protect crops and increase yield
| Size | Ply rating | RIM | Section width (mm) | Overall diamter (mm) | Load capacity (kg) | Inflation pressure (kPa) | Tread depth (mm） | Type |
| 400/60-15.5 IMP | 16 | AG13.00 | 404 | 874 | 3150 | 400 | 17.5 | TL |

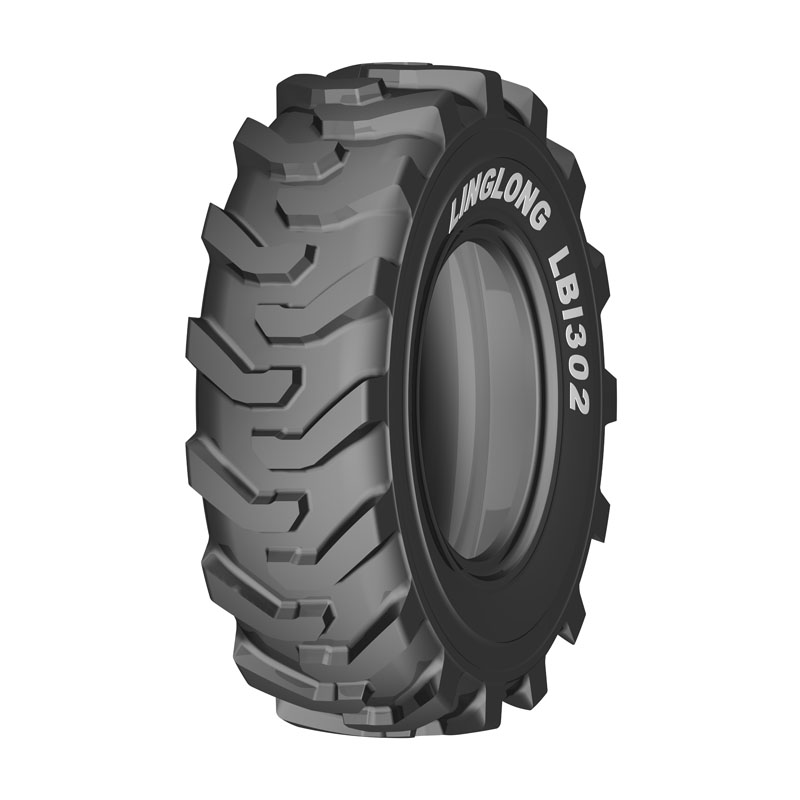

LBI302
■ Outstanding traction thanks to 40° designed lugs
■ Great traction due to specially developed tread pattern
| Size |
Ply rating |
Load index |
Speed symbols |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Type |
| 12.5/80-18 IMP | 14 | 145 | A6 | 9 | 318 | 985 | 2910 | 430 | TL |
| 16 | 148 | A6 | 9 | 318 | 985 | 3130 | 490 | TL |

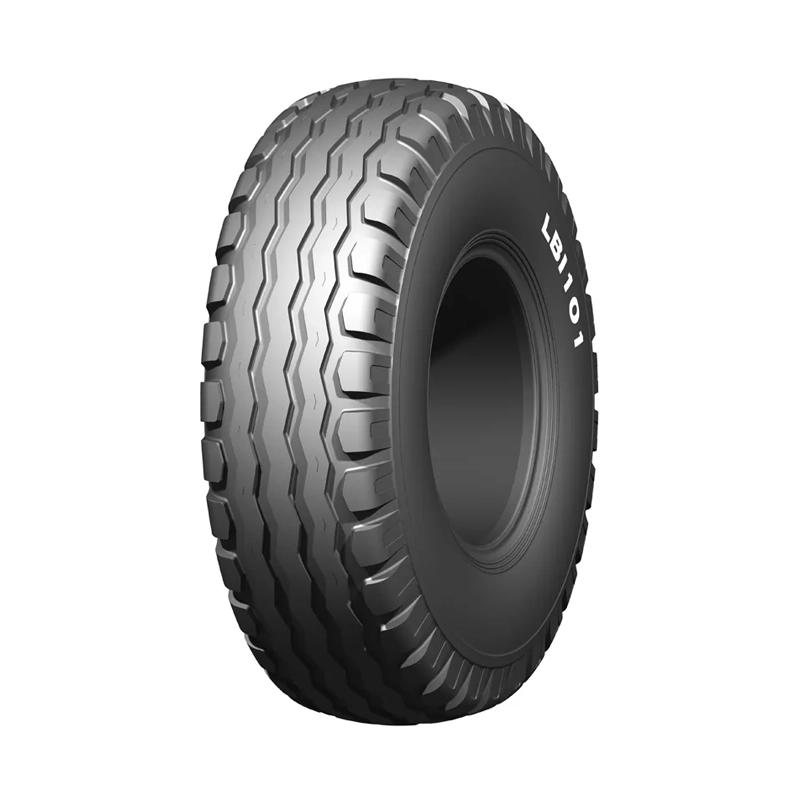

LBI101
I-3 Bias
■Shallow tread depth provides excellent heat dissipation
■Rib design provides excellent steering stability
| Size |
Ply rating |
Load index |
Speed symbols |
RIM |
Section width (mm) |
Overall diamter (mm） |
Load capacity (kg） |
Inflation pressure (kPa） |
Tread depth (mm） |
Type |
| 12.5/80-15.3 IMP | 14 | 142 | A6 | 9 | 308 | 900 | 2650 | 430 | 10 | TL |
| 10.0/75-15.3 IMP | 14 | 130 | A6 | 9 | 264 | 780 | 1900 | 550 | 9 | TL |
LL2
Bias
■Excellent protection against punctures
■Longer service life
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter (mm） |
Load capacity (kg） |
Inflation pressure (kPa） |
Tread depth (mm |
Type |
| 4.00-8 | 4 | 3.00D | 110 | 425 | 180 | 340 | 6.5 | TT |
| 6 | 3.00D | 110 | 425 | 410 | 420 | 6.5 | TT | |
| 8 | 3.00D | 110 | 425 | 700 | 530 | 6.5 | TT | |
| 4.00-12 | 6 | 3.00D | 112 | 535 | 240 | 360 | 7.5 | TT |
| 4.00-14 | 6 | 3.00D | 112 | 590 | 350 | 400 | 8 | TT |
| 7.00-16 | 10 | 5.50F | 188 | 760 | 1100 | 530 | 12 | TT |
| 12 | 5.50F | 188 | 760 | 1220 | 630 | 12 | TT | |
| 14 | 5.50F | 188 | 760 | 1320 | 730 | 12 | TT |
LL11
Bias
■ Excellent protection against punctures
■ Longer service life
■ Very good stability
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 6.50-16 | 10 | 5.50F | 185 | 750 | 975 | 530 | 10 | TT |
| 12 | 5.50F | 185 | 750 | 1060 | 630 | 10 | TT | |
| 7.00-16 | 10 | 5.50F | 188 | 760 | 1100 | 530 | 12 | TT |
| 12 | 5.50F | 188 | 760 | 1220 | 630 | 12 | TT | |
| 14 | 5.50F | 188 | 760 | 1320 | 730 | 12 | TT |

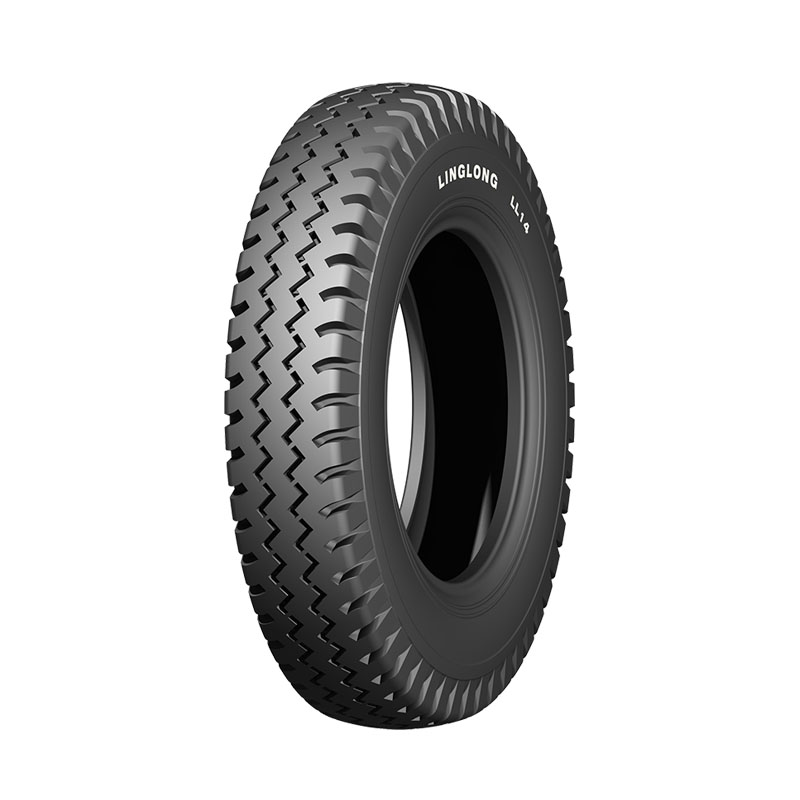

LL14
Bias
■ Excellent protection against punctures
■ Longer service life
■ Very good stability
| Size |
Ply rating |
RIM |
Section width(mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 5.00-16 | 8 | 3.00D | 130 | 680 | 1200 | 600 | 8 | TT |
| 10 | 3.00D | 130 | 680 | 1350 | 650 | 8 | TT | |
| 5.50-16 | 8 | 4.00E | 150 | 685 | 1100 | 470 | 8 | TT |
| 6.50-16 | 10 | 5.50F | 185 | 750 | 975 | 530 | 10.5 | TT |
| 12 | 5.50F | 185 | 750 | 1060 | 630 | 10.5 | TT |
LL15
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 6.00-16 | 6 | 4.50E | 170 | 730 | 635 | 320 | 9 | TT |
| 8 | 4.50E | 170 | 730 | 735 | 420 | 9 | TT | |
| 10 | 4.50E | 170 | 730 | 860 | 530 | 9 | TT | |
| 6.50-16 | 10 | 5.50F | 185 | 750 | 975 | 530 | 10 | TT |
| 12 | 5.50F | 185 | 750 | 1060 | 630 | 10 | TT | |
| 7.50-16 | 10 | 5.50F | 215 | 805 | 1240 | 400 | 13 | TT |

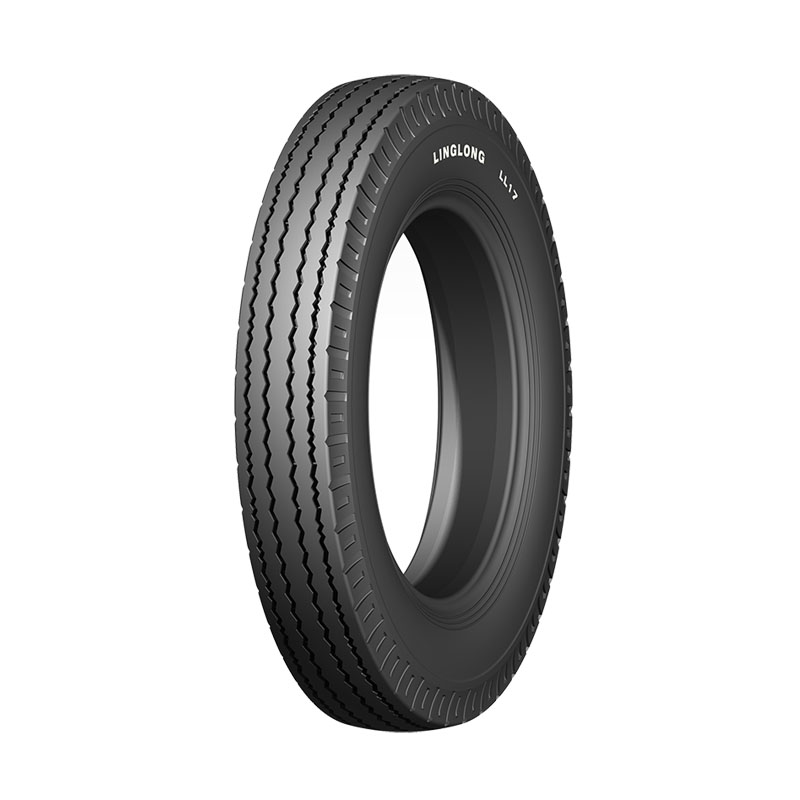

LL17
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 4.50-14 | 8 | 3.00D | 120 | 602 | 1000 | 450 | 8 | TT |

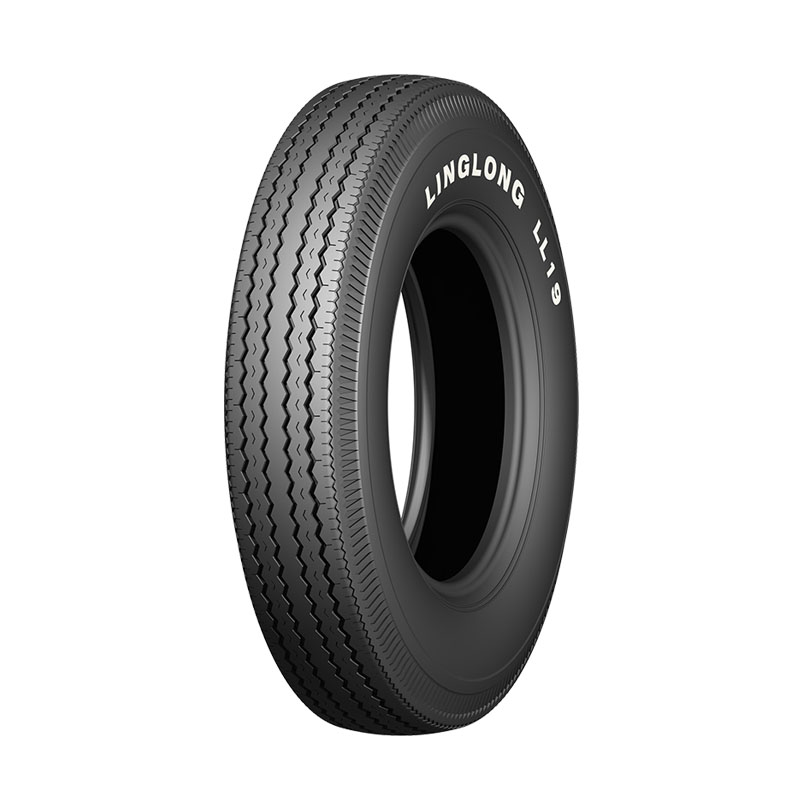

LL19
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 5.50-14 | 8 | 3.00D | 158 | 635 | 595 | 390 | 9 | TT |

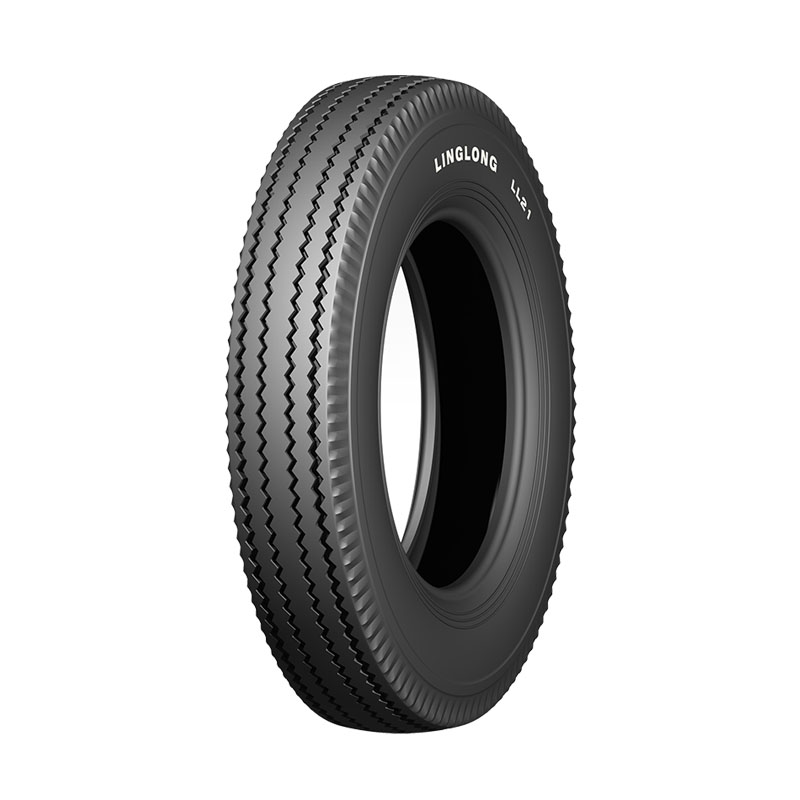

LL21
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 4.50-12 | 8 | 3.00B | 127 | 545 | 415 | 400 | 7 | TT |

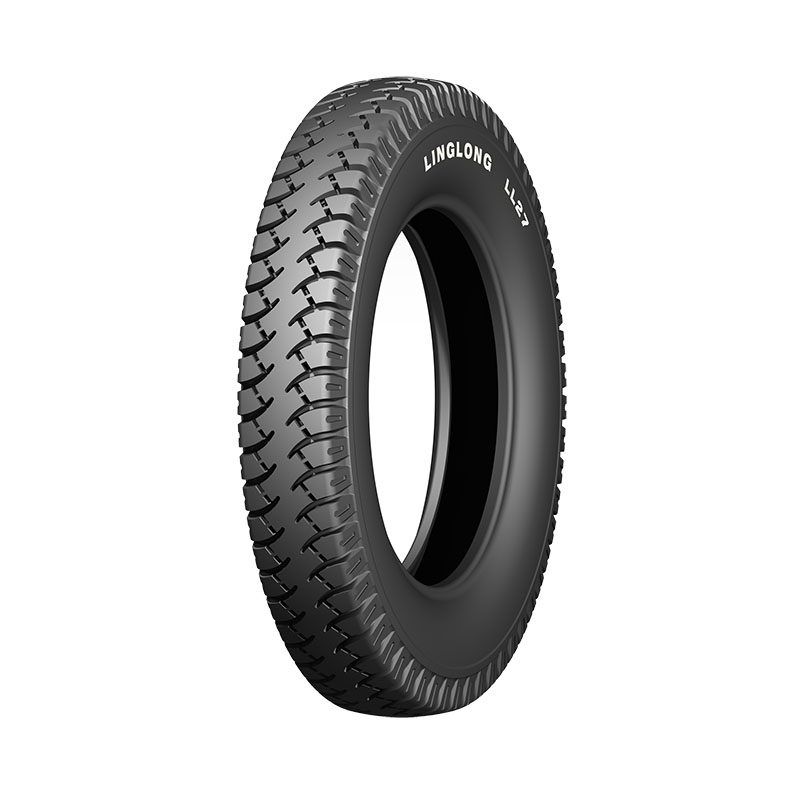

LL27
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply Rating |
RIM |
Section Width (mm) |
Overall Diameter (mm) |
Load Capacity (kg) |
Inflation Pressure (kPa) |
Tread Depth (mm) |
Type |
| 4.50-14 | 8 | 3.00D | 120 | 602 | 1000 | 450 | 8 | TT |
| 5.50-16 | 8 | 4.00E | 150 | 685 | 1100 | 470 | 8 | TT |
| 10 | 4.00E | 150 | 685 | 1325 | 530 | 8 | TT |

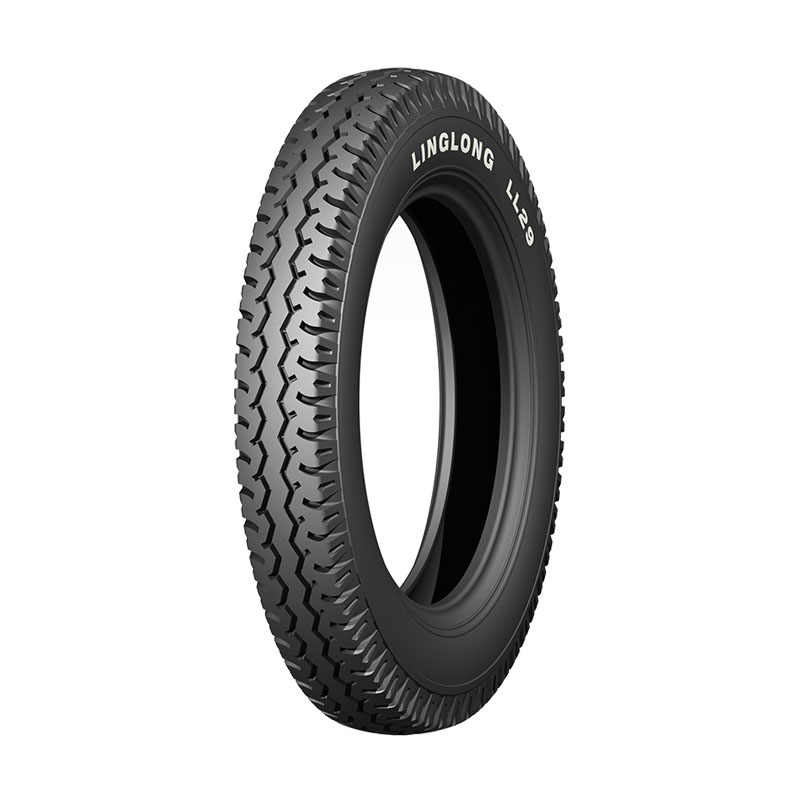

LL29
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 4.50-16 | 6 | 3.00D | 122 | 655 | 615 | 360 | 8 | TT |
| 8 | 3.00D | 122 | 655 | 1000 | 450 | 8 | TT | |
| 10 | 3.00D | 122 | 655 | 1325 | 530 | 8 | TT | |
| 5.00-14 | 8 | 3.00D | 130 | 620 | 1200 | 530 | 8 | TT |
LL38
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 4.50-16 | 6 | 3.00D | 122 | 655 | 615 | 360 | 8 | TT |
| 8 | 3.00D | 122 | 655 | 1000 | 450 | 8 | TT | |
| 10 | 3.00D | 122 | 655 | 1325 | 530 | 8 | TT | |
| 5.00-16 | 8 | 3.00D | 135 | 680 | 1200 | 600 | 8 | TT |
| 10 | 3.00D | 135 | 680 | 1350 | 650 | 8 | TT | |
| 5.50-16 | 8 | 4.00E | 150 | 685 | 1100 | 470 | 8 | TT |
| 10 | 4.00E | 150 | 685 | 1325 | 530 | 8 | TT |
LL82
Bias
■Excellent protection against punctures
■Longer service life
■Very good stability
| Size |
Ply rating |
RIM |
Section width(mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 4.00-8 | 6 | 3.00D | 110 | 425 | 410 | 420 | 6.5 | TT |
| 8 | 3.00D | 110 | 425 | 700 | 530 | 6.5 | TT |
LL40
Bias
■Outstanding flotation
■Easy steering from the heavy grooved ribs
| Size |
Ply rating |
RIM |
Section width (mm) |
Overall diamter （mm） |
Load capacity （kg） |
Inflation pressure （kPa） |
Tread depth (mm） |
Type |
| 10-15 | 8 | 9 | 300 | 775 | 1240 | 300 | 10 | TT |
